Descripción
Design
Three-way bass reflex
Drive units

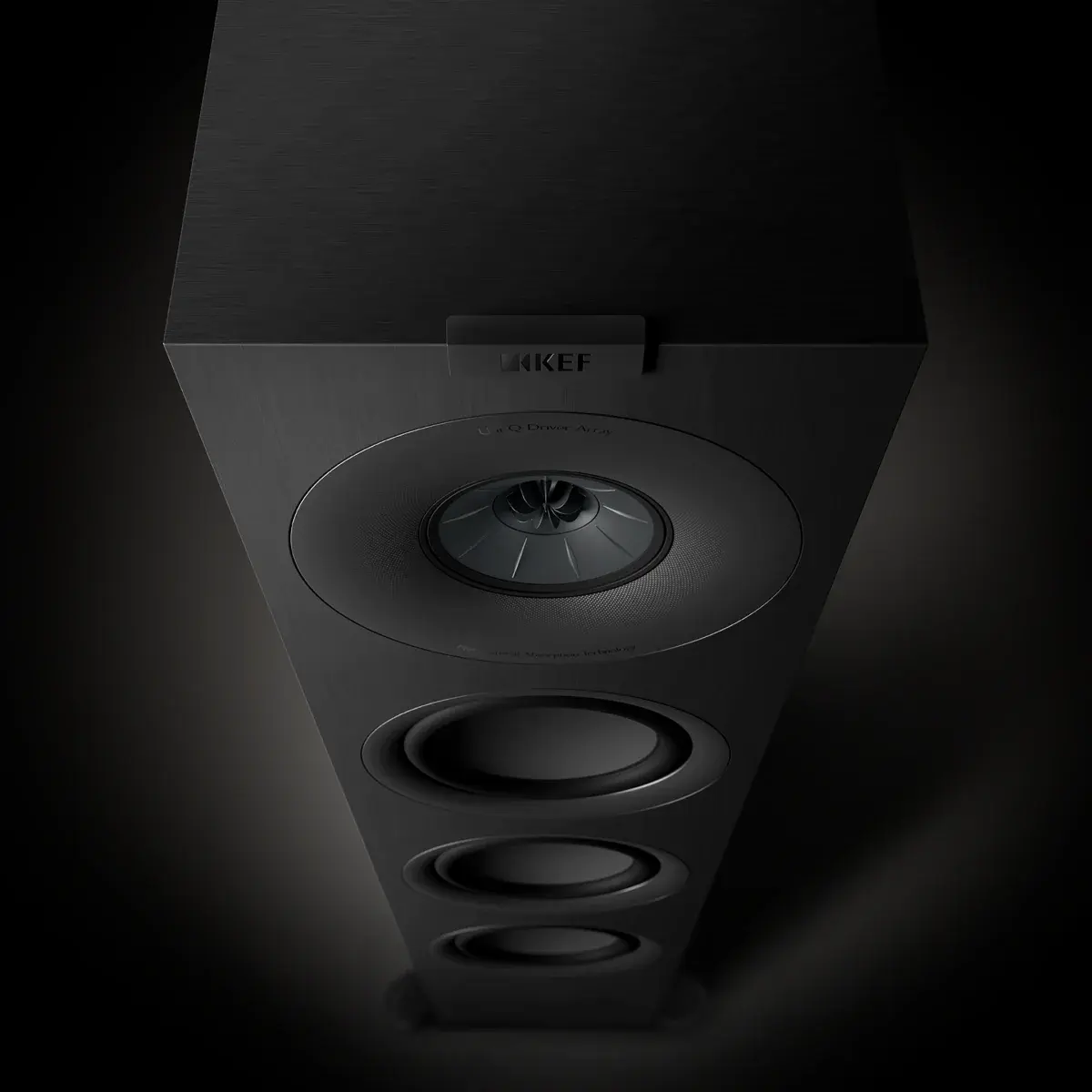

Uni-Q Driver Array:
HF: 19 mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
LF: 3 x 165 mm (6.5 in.) hybrid aluminium cone
HF: 19 mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
LF: 3 x 165 mm (6.5 in.) hybrid aluminium cone
Frequency range (-6dB)
37 Hz – 20 kHz
Typical in-room bass response (-6dB)
26 Hz
Frequency response (±3dB)
44 Hz – 20 kHz
Crossover frequency
480 Hz, 2.7 kHz
Amplifier requirements
15 – 225 W
Sensitivity (2.83V/1m)
89 dB
Harmonic distortion (90dB, 1m)
<2% 29 Hz and above
<1% 31 Hz – 20 kHz
<1% 31 Hz – 20 kHz
Maximum output
113 dB
Impedance
4 Ω (min. 3.2 Ω)
Weight *
22.5 kg (49.6 lbs.)
Dimension (H x W x D) with terminal *
1061 x 210 x 380 mm (41.8 x 8.3 x 15.0 in.)
Dimension (H x W x D) with terminal with Plinth *
1112 x 317 x 380 mm (43.8 x 12.5 x 15.0 in.)

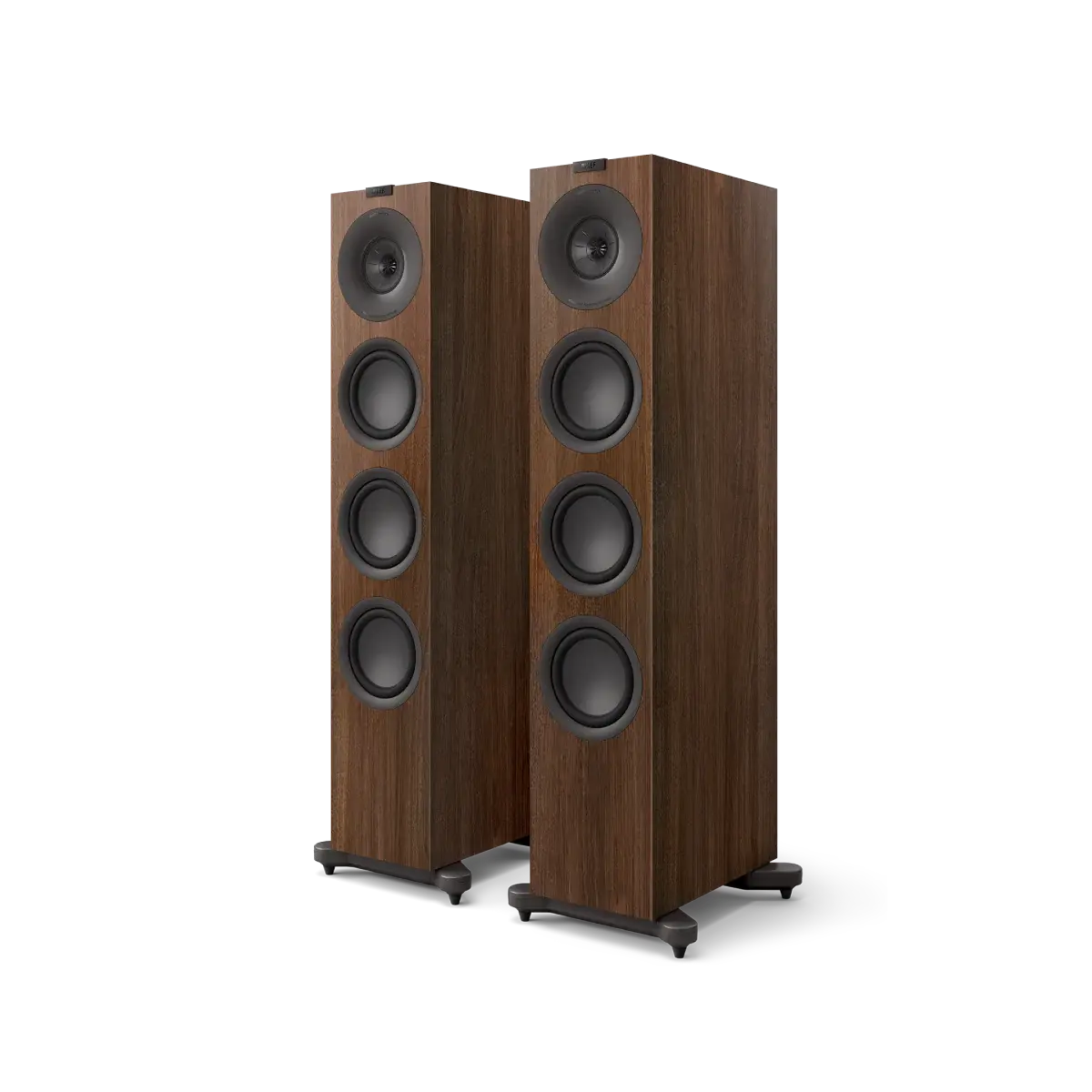

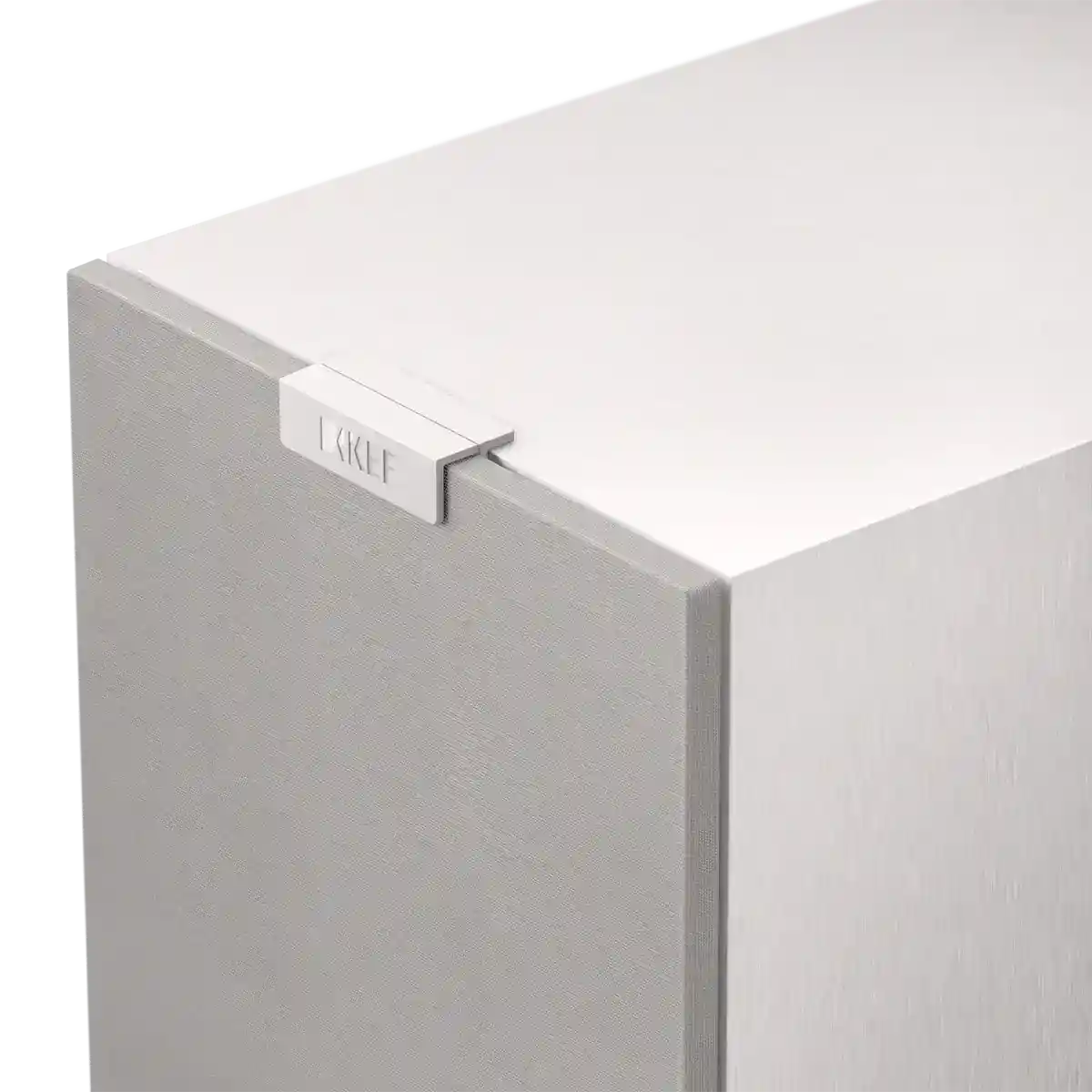

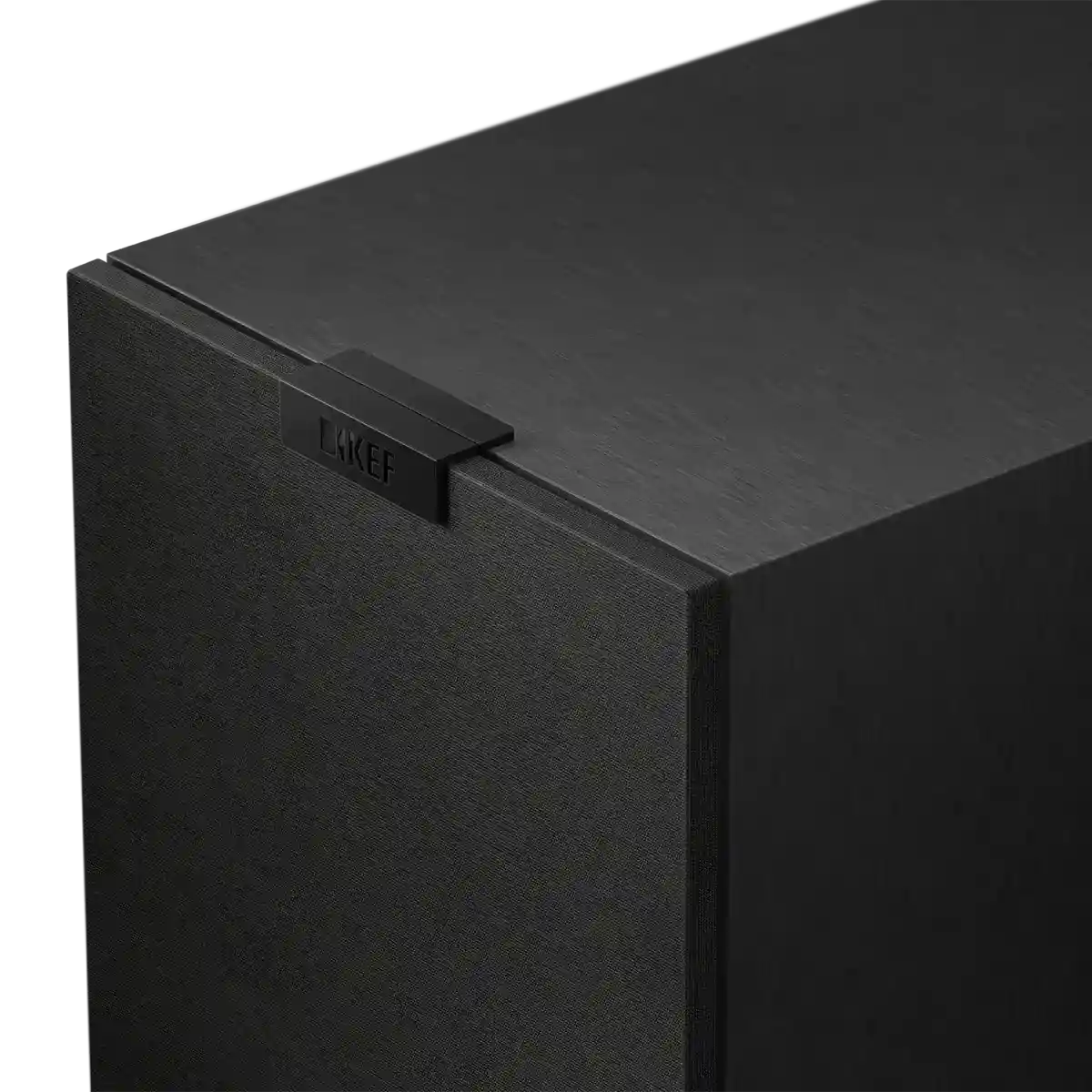

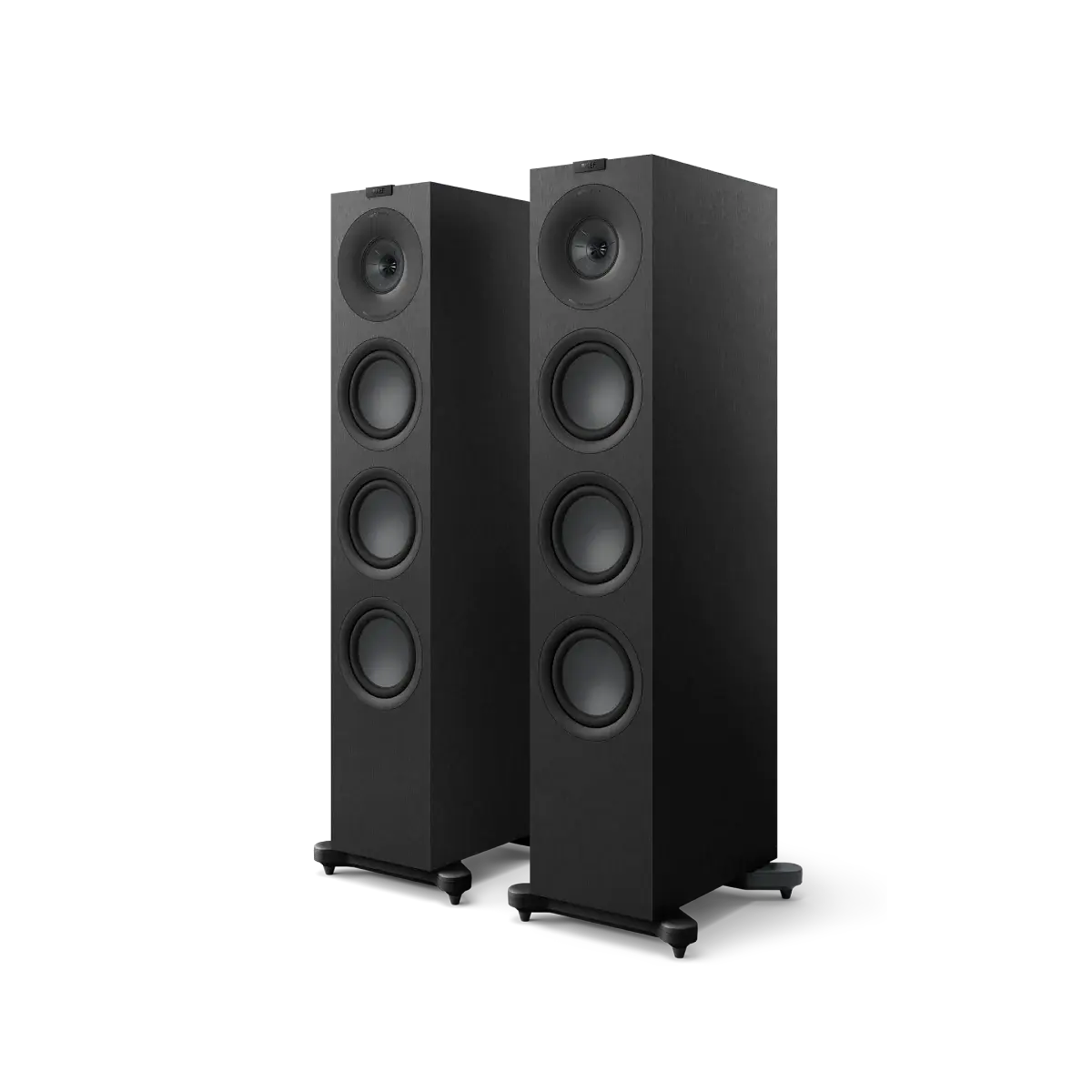

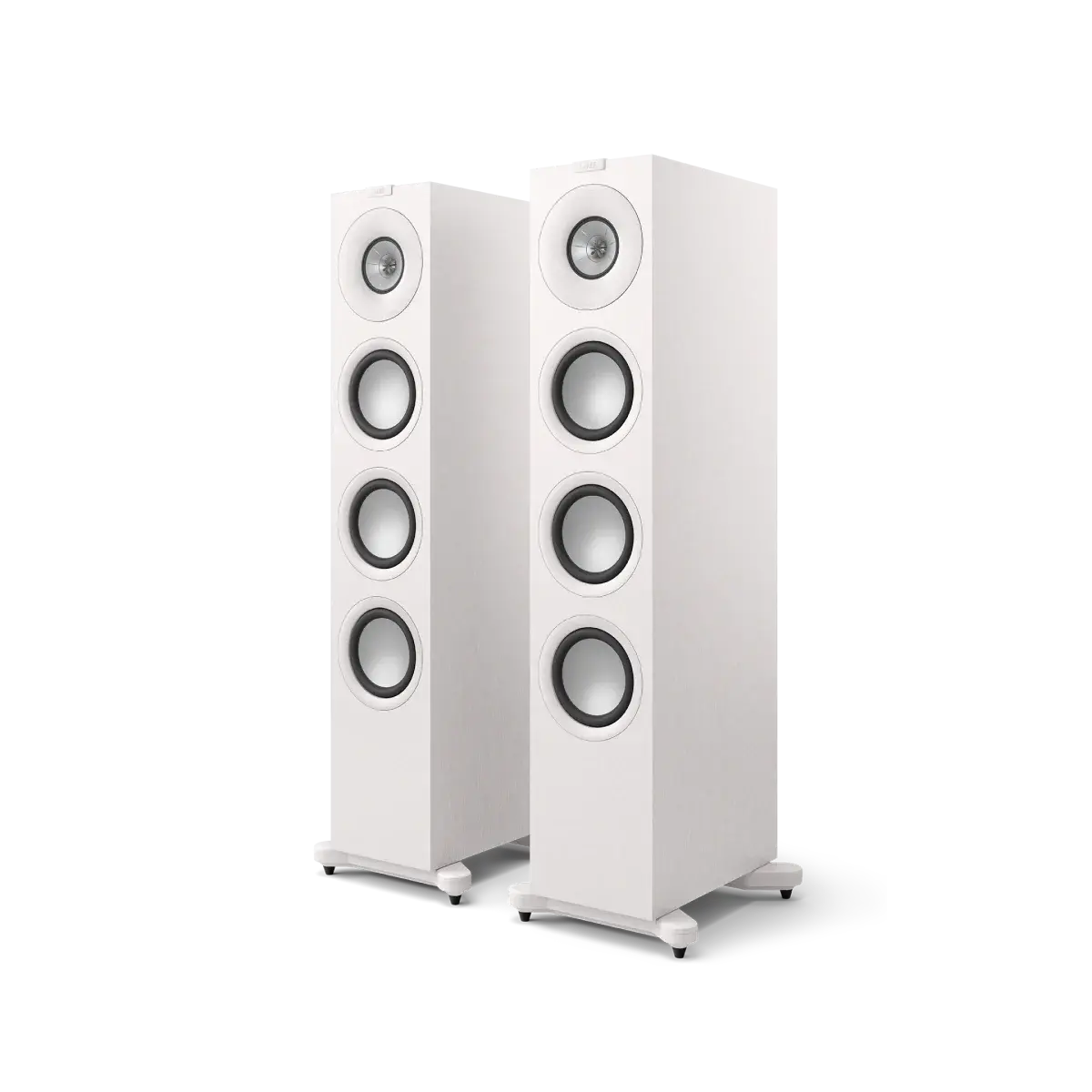

Finishes
Satin Black / Satin White / Walnut
