Descripción
Design
Two-way bass reflex
Drive units
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.25 in.) aluminium cone
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.25 in.) aluminium cone
Frequency range (-6dB)
47 Hz – 20 kHz
Typical in-room bass response (-6dB)
42 Hz
Frequency response (±3dB)
51 Hz – 20 kHz
Crossover frequency
2.1 kHz
Amplifier requirements
10 – 150 W
Sensitivity (2.83V/1m)
86 dB
Harmonic distortion (90dB, 1m)
<2% 140 Hz and above
<1% 170 Hz – 20 kHz
<1% 170 Hz – 20 kHz
Maximum output
108 dB
Impedance
4 Ω (min. 3.2 Ω)
Weight *
6.1 kg (13.4 lbs.)
Dimension (H x W x D) with terminal *
302 x 180 x 277 mm (11.9 x 7.1 x 10.9 in.)

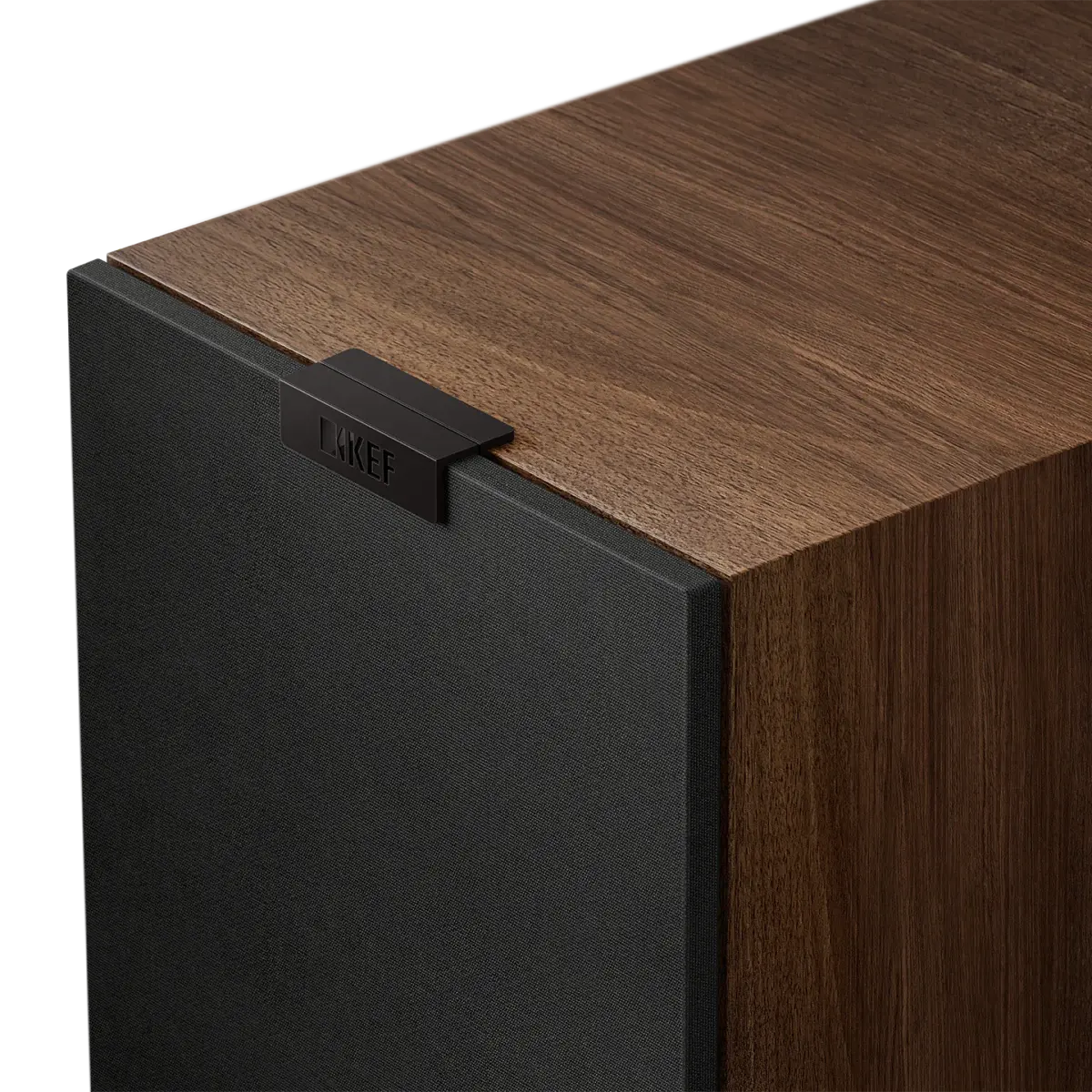

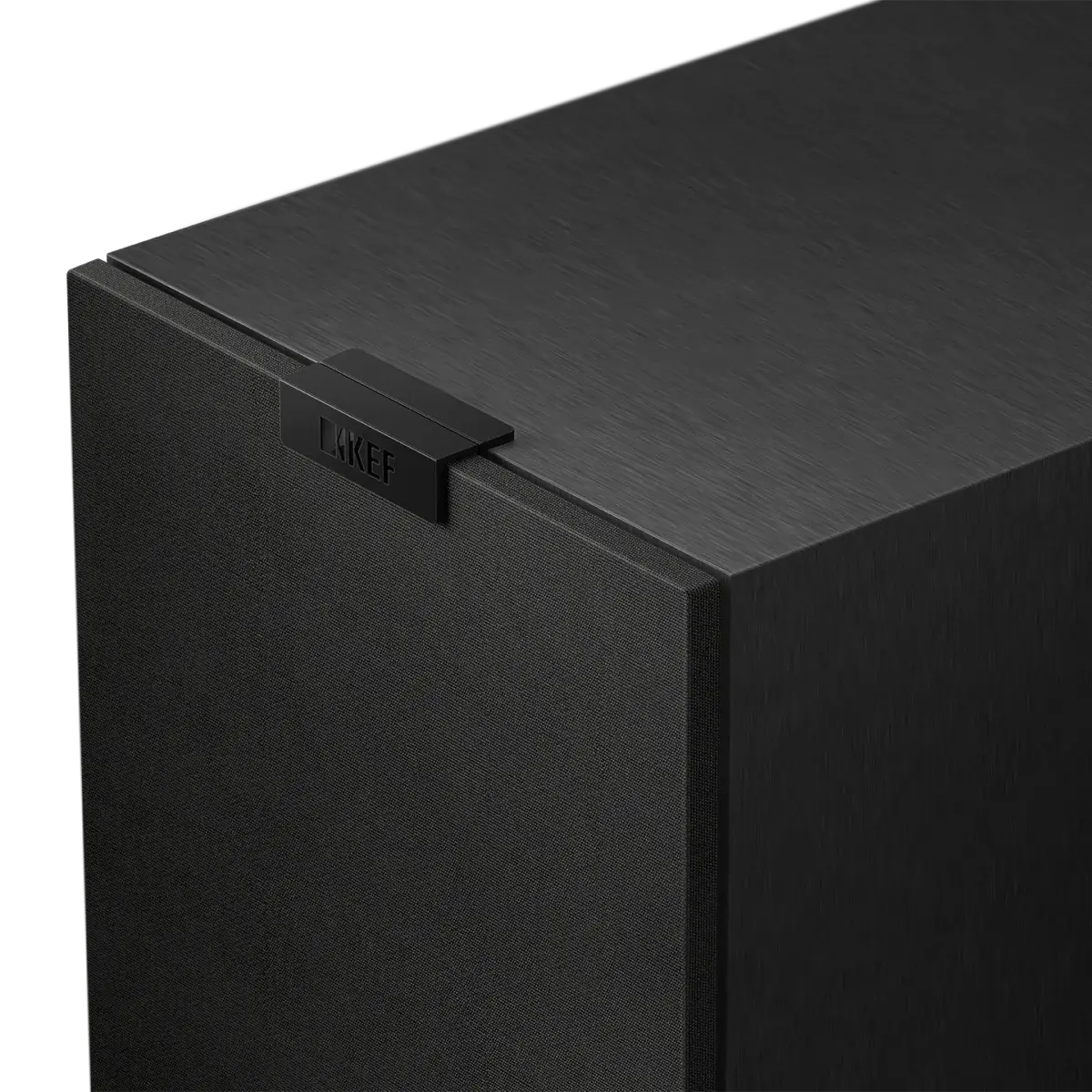

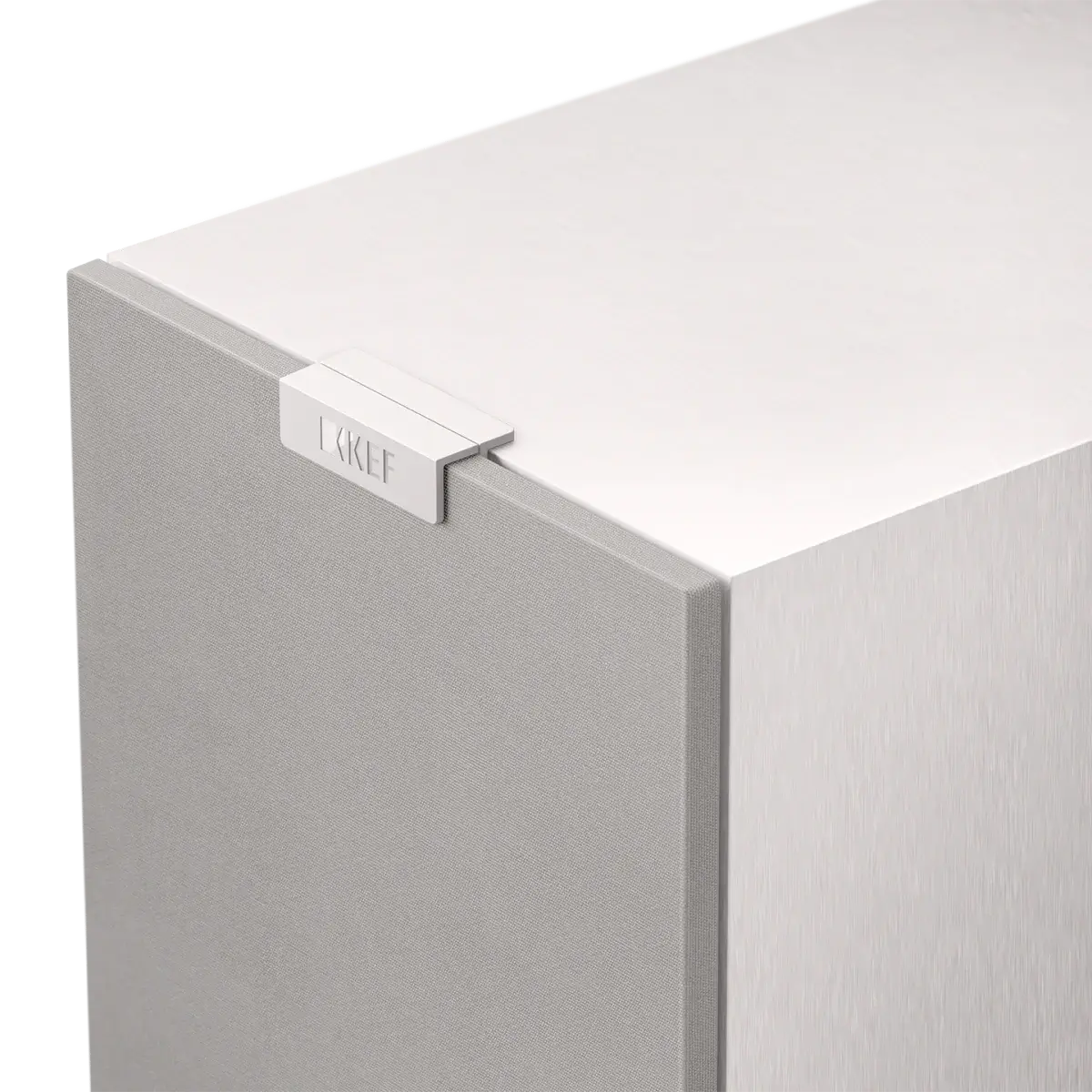

Finishes
Satin Black / Satin White / Walnut
